1:10 Volkswagen Amarok 4WD CC-01 (Assembly Kit)

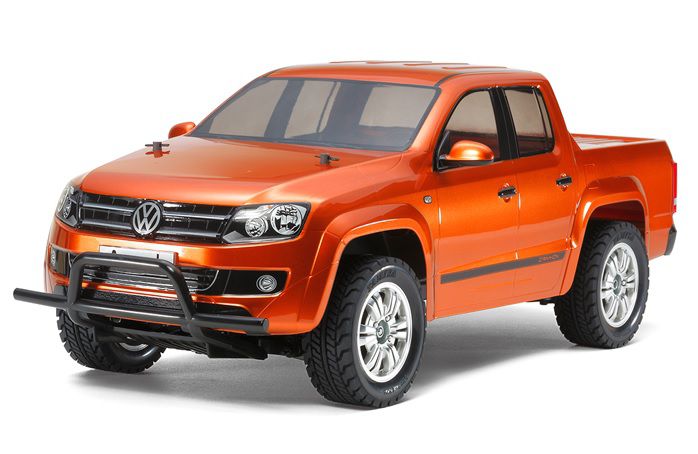

The Amarok is a Volkswagen pick-up truck, sold in Europe and South America since 2010. This R/C model assembly kit recreates the 4-door double-cabin Amarok model impressively in durable polycarbonate, using separate side mirror parts. Marking stickers are included in the kit to depict the front grille, headlights, taillights and more. The CC-01 chassis provides a highly appropriate base for the model, and is at home driving cross-country or on-road. Semi-gloss metal-plated wheels are paired with tires featuring a realistic tread pattern for a truly authentic R/C car model!

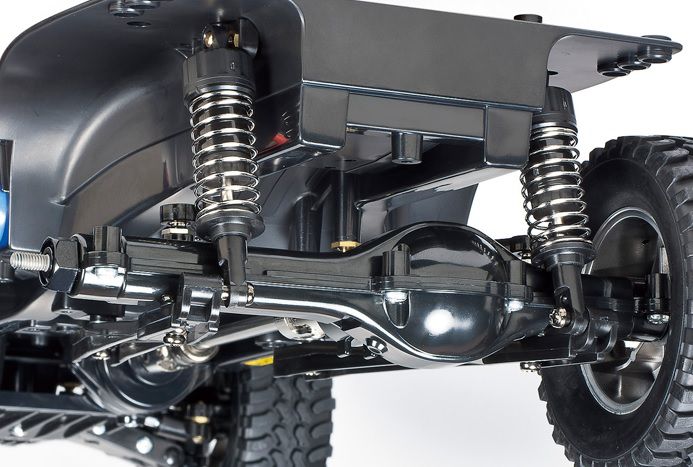

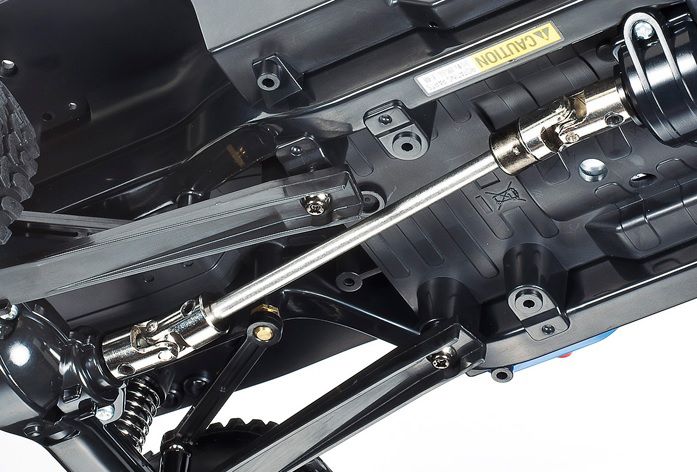

The CC-01's highly reliable and efficient full-time 4WD system features a longitudinally-positioned motor, which transmits power to the front wheels via the gearbox and to the rear wheels via propeller shaft. Front and rear differentials enable smooth cornering, and for even greater off-road performance on rough terrain, the rear differential may be locked during assembly. The chassis suspension employs double-wishbone front upper single links and lower H-shaped arms plus rear rigid suspension. With 4 CVA oil dampers in total fitted to the front and rear, there's enough cushion to take on even the roughest surfaces.

Features:

1:10 scale ready to assemble RC model kit
Equipped with rigid bathtub type frame
Double wishbone suspension in the front
4-link rigid suspension in the rear
Semi pneumatic all terrain tires
Comes with 4 high performance oil dampers
Features shaft driven full time 4WD
Can be assembled with locked rear diff gear

Set includes:

Tamyia CC-01 cross country chassis parts
Polycarbonated body (unpainted)

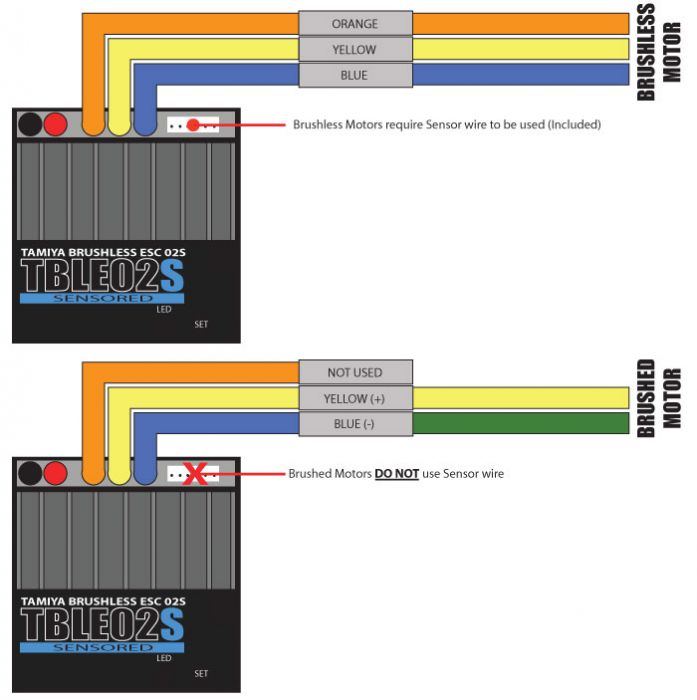

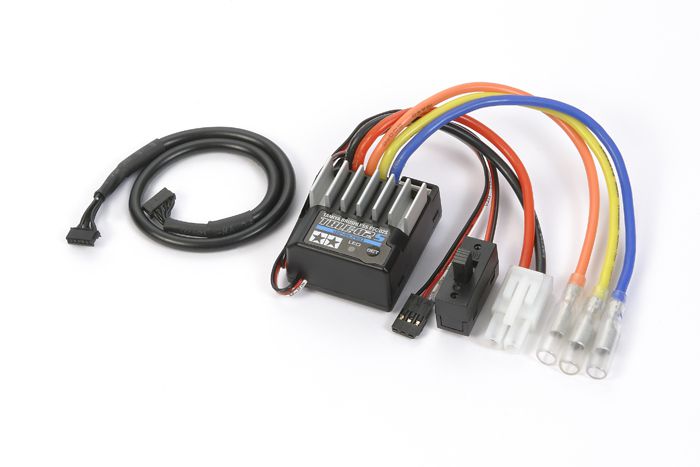

Tamiya TBLE-02S brushless & brushed ESC
Tires and wheels
Decal sheet

Required items:

Min 2-channel transmitter, receiver, steering servo, min 3300 mAh 7,2 V NiMh battery with Tamiya plug, charger, spray paint for polycarbonate body.

Technical data:

Scale: 1:10
Length: 465 mm
Width: 216 mm
Height: 170 mm
Tire Width (F/R): 29 mm
Tire Diameter (F/R) 78 mm
Wheelbase: 267 mm
Tread (F/R): 160 mm
Gear Ratio: 1:14.67
