Elektro GT 3520/05
Warenkode: GT3520/05
Elektro GT 3520/05
| Verfügbarkeit: | |
| Nademlejnská - eshop | 1 stk |
| OC Letňany | 1 stk |
Sie wissen nicht, wie Sie wählen sollen? Sind Ihnen einige Parameter nicht klar? Schreiben Sie uns Ihre Frage und wir werden Sie mit einer Antwort kontaktieren.
Frage senden-
Produktbeschreibung
-
Technische Daten
Produktbeschreibung
Typ: bürstenlose Aussenläufer

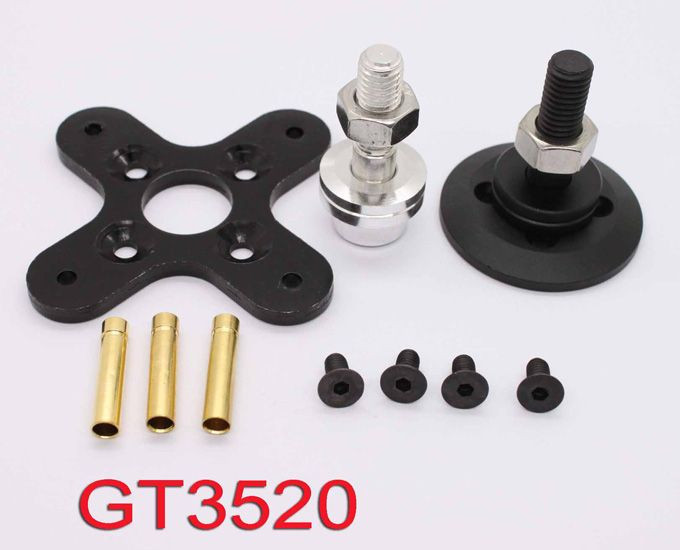

Zubehör im Set: Einbausatz für die Front (Kreuz) Adapter für die Hinterwandmontage Befestigungs
Montage: Rücken-oder Außenmontage, mit Quer

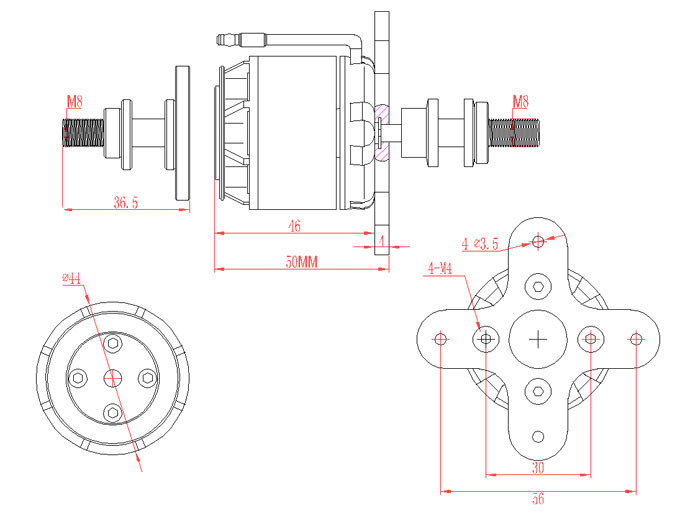

Abmessungen: 46 x 44 mm
Welle: Durchmesser 5 mm
Gewicht: 220 g
Empfohlene Leistung: 3-5 Li-Pol
Empfohlene Modell Gewicht: 800 - 3000 g
Empfohlene prop: 12x6, 11x5, 5
|

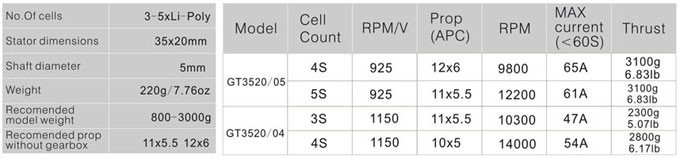

Übersicht Motorparameter E-Max GT35xx |
||||
|
Motortyp |
GT3520/05 |
GT3526/04 |
GT3526/05 |
|
|
Macht |
3-5 Lipols |
3-5 Lipols |
3-5 Lipols |
|
|
Die Geschwindigkeit V |
925 U / V |
870 U / V |
710 U / V |
|
|
Anzahl der Windungen |
05 |
04 |
05 |
|
|
Int. Widerstand |
xx |
xx |
xx |
|
|
Stolze zB |
1,5 A |
1,7 A |
1,7 A |
|
|
Wirksamkeit |
82% |
83% |
83% |
|
|
Max. Last |
61A |
69A |
57A |
|
|
Regler |
|
70A |
60A |
|
|
Größe Stator |
35x20 mm |
35x26 mm |
35x26 mm |
|
|
Laube |
|
|
|
|
|
Gewicht |
|
|
|
|
Technische Daten
|
Verwendung von Motoren der Modelle |
Empfohlene Propeller APC (Größe in den Zoll) |
|||||||||
|
Motortyp |
COACH |
AKROBAT |
3D |
Motortyp |
2 Lixx |
3 Lixx |
4 Lixx |
5 Lixx |
6 Lixx |
10 Lixx |
|
BL1806/xx |
260 g |
240 g |
180 g |
BL1806/xx |
8x4 E |
7x5 E |
|
|
|
|
|
BL1812/xx |
430 g |
380 g |
220 g |
BL1812/xx |
8x4 E |
6x5, 5 E |
|
|
|
|
|
BL2205/xx |
350 g |
320 g |
230 g |
BL2205/xx |
8x6 SF |
|
|
|
|
|
|
BL2210/25 |
480 g |
400 g |
350 g |
BL2210/25 |
8x6 E |
7x6 E |
|
|
|
|
|
BL2210/30 |
600 g |
500 g |
420 g |
BL2210/30 |
9x5, 5 SF |
9x4, 7 SF |
|
|
|
|
|
BL2215/20 |
1000 g |
800 g |
600 g |
BL2215/20 |
10x5, 5 SF |
10x4, 7 SF |
|
|
|
|
|
BL2215/25 |
800 g |
600 g |
500 g |
BL2215/25 |
10x5, 5 SF |
10x4, 7 SF |
|
|
|
|
|
BL2220/07 |
1300 g |
1100 g |
900 g |
BL2220/07 |
11x3, 8 SF |
10x4, 7 SF |
|
|
|
|
|
BL2220/10 |
1200 g |
1000 g |
800 g |
BL2220/10 |
12x6 SF |
11x7 SF |
|
|
|
|
|
BL2810/xx |
1100 g |
900 g |
750 g |
BL2810/xx |
|
11x3, 8 SF |
11x7 E |
|
|
|
|
BL2815/xx |
1700 g |
1500 g |
1100 g |
BL2815/xx |
|
11x5, 5 SF |
11x7 E |
|
|
|
|
BL2820/xx |
2300 g |
2200 g |
1500 g |
BL2820/xx |
|
|
12x6 E |
|
|
|
|
BL2826/xx |
2800 g |
2600 g |
1800 g |
BL2826/xx |
|
|
12x8 E |
|
|
|
|
BL2832/xx |
3100 g |
2700 g |
1900 g |
BL2832/xx |
|
|
13x6, 5 E |
|
|
|
|
BL3526/04 |
3000 g |
2600 g |
1900 g |
BL3526/04 |
|
|
|
14x8 E |
|
|
|
BL3526/05 |
2800 g |
2400 g |
1700 g |
BL3526/05 |
|
|
|
14x8 E |
|
|
|
BL4020/xx |
4500 g |
3600 g |
2600 g |
BL4020/xx |
|
|
|
14x7 SF |
13x8 E |
|
|
BL4030/xx |
5500 g |
4000 g |
3000 g |
BL4030/xx |
|
|
|
14x7 SF |
13x11 E |
|
|
BL5335/xx |
10.000 Gramm |
7500 g |
5000 g |
BL5335/xx |
|
|
|
|
|
20x10 E |
|
BL5345/xx |
12.000 Gramm |
9000 g |
7000 g |
BL5345/xx |
|
|
|
|
|
22x10 E |
|
CF2205/xx |
300 g |
260 g |
220 g |
CF2205/xx |
7x4 SF |
|
|
|
|
|
|
CF2210/xx |
600 g |
500 g |
450 g |
CF 2210/xx |
10x4, 7 SF |
7x6 E |
|
|
|
|
|
CF2805/xx |
413 g |
310 g |
270 g |
CF2805/xx |
7x4 SF |
|
|
|
|
|
|
CF2812/xx |
690 g |
540 g |
400 g |
CF2812/xx |
7x4 SF |
7x6 SF |
|
|
|
|
|
CF2822/xx |
740 g |
600 g |
500 g |
CF2822/xx |
|
10x4, 7 SF |
|
|
|
|
|
GF2205/xx |
300 g |
250 g |
200 g |
GF2205/xx |
7x4 SF |
|
|
|
|
|
|
GF2210/xx |
550 g |
480 g |
400 g |
GF2210/xx |
9x4, 7 SF |
7x6 E |
|
|
|
|
|
GT2203/xx |
300 g |
260 g |
220 g |
GT2203/xx |
8x4 E |
|
|
|
|
|
|
GT2205/22 |
500 g |
410 g |
370 g |
GT2205/22 |
8x4 E |
8x4 E |
|
|
|
|
|
GT2205/33 |
500 g |
400 g |
370 g |
GT2205/33 |
8x4, 7 SF |
8x4, 7 SF |
|
|
|
|
|
GT2210/09 |
800 g |
720 g |
630 g |
GT2210/09 |
9x4, 7 SF |
8x4E |
|
|
|
|
|
GT2210/13 |
800 g |
710 g |
620 g |
GT2210/13 |
9x4, 7 SF |
8x6 E |
|
|
|
|
|
GT2215/09 |
1100 g |
950 g |
850 g |
GT2215/09 |
10x6 SF |
10x4, 7 SF |
|
|
|
|
|
GT2215/12 |
1100 g |
930 g |
830 g |
GT2215/12 |
|
10x4, 7 SF |
|
|
|
|
|
GT2218/09 |
1200 g |
1050 g |
900 g |
GT2218/09 |
10x6SF |
10x4, 7 SF |
|
|
|
|
|
GT2218/11 |
1200 g |
1030 g |
900 g |
GT2218/11 |
11x6 SF |
11x4, 7 SF |
|
|
|
|
|
GT2812/05 |
1400 g |
1200 g |
1000 g |
GT2812/05 |
10x5 E |
8x4E |
|
|
|
|
|
GT2812/10 |
1400 g |
1200 g |
1000 g |
GT2812/10 |
|
12x6 E |
|
|
|
|
|
GT2815/05 |
1800 g |
1600 g |
1400 g |
GT2815/05 |
|
9x4, 7 SF |
|
|
|
|
|
GT2815/07 |
1800 g |
1550 g |
1380 g |
GT2815/07 |
13x6, 5E |
11x5, 5 E |
|
|
|
|
|
GT2820/04 |
2300 g |
2000 g |
1800 g |
GT2820/04 |
|
10x5 E |
9x4, 7 SF |
|
|
|
|
GT2820/07 |
2280 g |
1980 g |
1760 g |
GT2820/07 |
|
12x6 E |
12x6 E |
|
|
|
|
GT2826/04 |
3000 g |
2600 g |
2200 g |
GT2826/04 |
|
11x5, 5 E |
10x5 E |
|
|
|
|
GT2826/06 |
3000 g |
2500 g |
2150 g |
GT2826/06 |
|
|
14x7 E |
13x6, 5 E |
|
|
|
GT3520/04 |
3000 g |
2700 g |
2300 g |
GT3520/04 |
|
11x5, 5 E |
10x5 E |
|
|
|
|
GT3520/05 |
3000 g |
2650 g |
2270 g |
GT3520/05 |
|
|
12x6 E |
11x5, 5 E |
|
|
|
GT3526/04 |
3300 g |
2900 g |
2500 g |
GT3526/04 |
|
|
13x6, 5 E |
|
|
|
|
GT3526/05 |
3300 g |
2900 g |
2500 g |
GT3526/05 |
|
|
13x7 E |
13x7 E |
|
|
|
GT4020/07 |
4900 g |
4100 g |
3700 g |
GT4020/07 |
|
|
|
15x8 E |
14x7 E |
|
|
GT4020/09 |
4900 g |
4080 g |
3700 g |
GT4020/09 |
|
|
|
16x10 E |
16x10 E |
|
